The Aeromesh Systems CPE-58800 is a high-performance outdoor wireless network extension device powered by advanced MIMO technology. This rugged, compact solution delivers exceptional throughput for voice, video, and data applications while supporting 100+ clients. Featuring centralized management via CLI/HTTP/SNMP, integrated PoE, and robust security with QoS optimization, the CPE-58800 provides reliable Point-to-Point and Point-to-Multipoint connectivity with seamless mesh hand-off capabilities for demanding network environments.

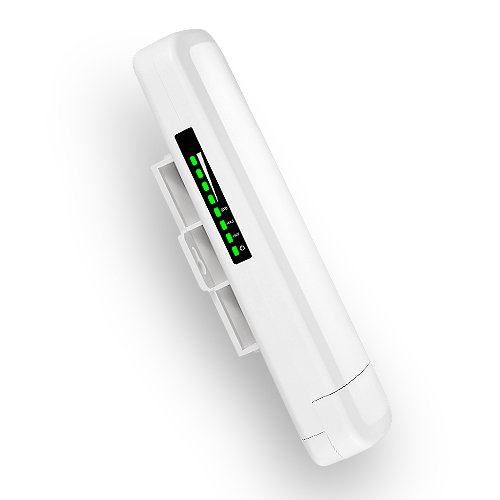

Aeromesh systems CPE-58800h equipment, powered by Aeromesh and MIMO techniques is our highest performance Edge wireless network extension device for a long reach of an outdoor wireless network. The CPE-58800h is small, sleek and rugged device with flexible mounting options, enabling the longest reach and instant mesh hand-off for large number of client devices compared to any other wireless devices.
Optimal Throughput for Voice, Video and Data Applications: Aeromesh systems CPE-58800L is an ideal solution for a subscriber client. It is configurable to extend the reach of Aeromesh Systems ConnectSphere Network to 100+ clients or as standalone 802.11ac radio outdoor access point. It supports a broad range of voice, video and data applications delivering the highest performance and seamless mobility. The CPE-58800h is an ideal choice for any communications network worldwide.
Low Latency and High Throughput across multiple wireless hops:
While wireless-enabled laptops and other wireless devices don’t provide adequate power to communicate with outdoor mesh networks, the CPE-58800h offers a multi-fold increase in power, enabling high-speed, reliable and long range Point to Point and Point to Multipoint connections with Aeromesh Systems Wi-Fi mesh, and extending network coverage over Ethernet to a large set of networked devices. CPE-58800h has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. All Aeromesh Systems ConnectSphere products are self-configuring, enable interference mitigation, provide network resiliency, and offer built-in troubleshooting tools and remote upgradeability for the most demanding environments.
Security & (QoS) Optimization:
Aeromesh Systems CPE-58800h provides enhanced Quality of Service and supports the highest levels of security authentication and encryption to secure and protect clients. It also supports Multiple VLANs, PPPoE, data rate limiting.
Easy Manageability:
Aeromesh Systems CPE-58800h supports centralized provisioning and easy remote manageability via CLI, HTTP and SNMP. The device also supports remote firmware updates and includes a number of monitoring, trending and troubleshooting options from a centralized NOC. The Aeromesh Systems CPE-58800h allows dynamic channel assignment, automatic power control and data rate selection for greatest RF spectrum efficiency, supports event logging and statistics, Layer-2 and Layer-3 NAT monitors, client monitor, rogue device detection and reports signal strength history.
Wireless Specifications
- Wireless Standards: 802.11A/N/AC
- Frequency Bands2: 5.15 – 5.825 GHz
- Receiver Sensitivity Rates
-58dBm (MCS9 802.11ac H80)
– 90 dBm (6M 802.11a) - Transmit Power
-Up to 27 dBm2 - Modulations
-802.11a: 16-QAM, QPSK, BPSK
-802.11n: 16-QAM, 64-QAM, QPSK, BPSK
-802.11ac: 16-QAM, 64-QAM, 256-QAM, QPSK, BPSK - Supported Channel Widths1, 2
-20, 40, and 80 MHz
Receiver Sensitivity Rates
- 58dBm (MCS9 802.11ac H80)
- 90 dBm (6M 802.11a)
Modulations
- 802.11a: 16-QAM, QPSK, BPSK
- 802.11n: 16-QAM, 64-QAM, QPSK, BPSK
- 802.11ac: 16-QAM, 64-QAM, 256-QAM, QPSK, BPSKK
Transmit Power
- Up to 27 dBm2
Remote and Local Management
- HTTP, HTTPS, CLI, Telnet, SSH1, SNMP, FTP
- Remote Management and Provisioning1
- Bandwidth Provisioning1
Antenna Specifications
- 5 GHz Internal Antenna
-2X2 MIMO, 23 dBi
-Panel antenna
Interfaces and Ports
- 2 x 10/100/1000 Mbps
- 1 Reset Button
Electrical
- Passive PoE: 48V
- Max power: 13W
Physical
- Dimension: 315mm H x 145mm W x 80mm D
- Pole Mount
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -40°C to 70°C
- Humidity: 5%~95% Non-condensing
Features
- Comply with IEEE802.11ac/a/n 5GHz
- 1+1 10/100/1000Mbps WAN + LAN ports
- 867 Mbps WLAN RF capacity
- Smart QoS
- 8 BSSIDs Per Radio
- Configurable operating modes for 5Ghz Radio(STA/AP)
- Bridge and Router modes
- Well suitable for outdoor Edge deployment
Security & Encryption
- 802.11i Security: WPA-PSK, WPA2-PSK
- AES and TKIP encryption
- WPA2 Enterprise1
- Wired Equivalent Privacy (WEP)
- PPPoE1
- MAC Address Access Control Lists
- Client Isolation
- Management VLAN1
- Firewall
Operating Modes
- Station, Access Point
- Layer-2 NAT/WDS
- Layer-3 NAT, DHCP Server
Monitoring/Troubleshooting
- Clients, Wireless neighbor monitor
- Event Logging and Statistics
- Layer 2/3 NAT Monitor
- Signal Strength Indicator
- Antenna Aimer and other diagnostic utilities1
Firmware
- Open
Applications
- Comply with IEEE802.11ac/a/n 5GHz
- 1+1 10/100/1000Mbps WAN + LAN ports
- 867 Mbps WLAN RF capacity
- Smart QoS
- 8 BSSIDs Per Radio
- Configurable operating modes for 5Ghz Radio(STA/AP)
- Bridge and Router modes
- Well suitable for outdoor Edge deployment
